Custos
Entering a new era
The Design you see, the Thermal Break you feel, the Safety you seek.
- Burglar-resistant: class 4
- Hinges: HidenRoll concealed hinges with opening up to 125°, adjustable on 3 axes and obliquely for perfect installation.
- Thermal break: thermal break on the leaf and frame for maximum living comfort
- Installable locks: single cylinder (C6), double cylinder (C7), electromechanical DOMO Connexa (C8 DOMO), electromechanical SMART single action Iseo (C8 SMART single action), electromechanical SMART Iseo (C8 SMART)
- Dimensions: standard up to LA 900x2100mm, maximum single-leaf LA 1200x3000mm, minimum LA 750x1751mm
Custos
Protection and design meet, right where your home begins.
In Latin “custos” (genitive: custodis) means guardian, overseer or the one who takes
care of something or someone. It is the inspiration from which we started.
Bauxt chose this symbol of protection to create a door that was truly the guardian of your home. With the most innovative technologies and the most advanced materials, Custos today represents the new frontier of safety and design.
The future of security has already arrived in your home.
Special Intro handles: (on request, not standard)
Available on request with flush defender and fixed external Intro handle, dedicated, recessed on the panel, painted with aluminium effect finish.
Note: the recessed fixed handle will be removed in presence of an external fixed handle/grab bar.
Available on request with an internal Intro handle, dedicated, recessed on the panel, painted with an aluminium effect finish. Cylinder with dedicated internal knob.
Mounting solutions
Same frame, same aluminum profiles, multiple mounting solutions.
Flush to the internal wall
Internal coplanar
Coplanar – flush to the internal wall and external coplanar
Certifications
Burglar-resistant
class 4 with extensibility from LA 800×2000 up to LA 1200×3000 according to UNI EN 1627.
Acoustics
RW=42dB up to 2.835 m2 of LA (e.g. with maximum width LA 1200×2362, e.g. with maximum height LA 945×3000), beyond this surface RW=41dB.
Thermal
Up to UD= 0.9 W/m²K
Air / Water / Wind
Single solid door 2/npd/5C up to LA 1000×2500, beyond 2/npd/npd up to LA 1200×3000; single solid door with kit Sigillo (threshold) for water tightness during testing.
Hidden Roll hinges
Perfect assembly merges aesthetics and performance
The historic Roll hinge (patented by Bauxt), which allows adjustment on three axes (height, width, and depth) as well as diagonal adjustment to achieve correct door alignment even in the most challenging situations—while ensuring maximum performance even under extreme conditions—has been reinterpreted with a modern approach. From its evolution comes Hidden Roll, the new concealed hinge that combines design with the functionality of the previous system. A next-generation hinge, technologically advanced and high- performing, equipped with a special 8 mm pin designed to improve stability and long-term durability. Tested to 100,000 cycles, with maximum dimensions of 1200 × 3000 mm.
Modelli porta blindata Custos
Custos C6
Gear-driven lock for cylinder (Grade 7), featuring a Duo anti-drill and anti- bumping cylinder (Grade 2) with internal knob, protected by an anti-drill and anti-pipe defender (Grade 4).
Key system: 1 recodable installation key (not unified) + 3 master keys with Security Card.
7 securing points: 6 moving points and 1 spring latch (without fixed bolts).
Custos C7
Gear-driven lock for double cylinder (Grade 7) with standard cascading lockout system (with the second turn of the master/upper cylinder, the operation of the service/lower cylinder is inhibited), featuring master (upper) and service (lower) Duo anti-drill and anti-bumping cylinders (Grade 2) with internal knob — in master and service configuration; both protected by anti-drill and anti- pipe defenders (Grade 4).
Key system: 1 recodable installation key (non unified) for the master cylinder + 1 recodable installation key (non unified) for the service cylinder + 3 master keys with Security Card + 3 service keys with Security Card.
8 securing points: 7 moving points and 1 spring latch (without fixed bolts).

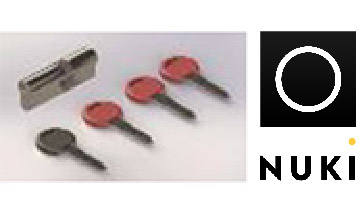

Custos C8 DOMO Connexa
Electromechanical lock (CISA DOMO Connexa version) with Duo anti-drill and anti-bumping key-to-key cylinder (Grade 2) protected by anti-drill and anti- pipe defender (Grade 4).
Alkaline batteries (non-rechargeable), internal Button including Bluetooth module.
Key system: 1 recodable installation key (not unified) + 3 master keys with Security Card. The lock/door can be opened and managed via the Nuki app over Bluetooth. When the door is securely closed, the handle is free-spinning. 7 securing points: 6 moving points and 1 spring latch (without fixed bolts).

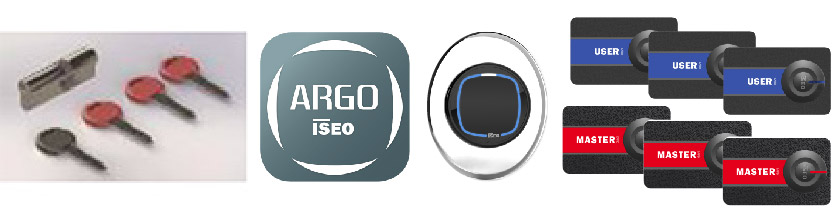

Custos C8 SMART
Electromechanical lock (Iseo SMART version) with Duo anti-drill and anti- bumping key-to-key cylinder (Grade 2) protected by anti-drill and anti-pipe defender (Grade 4).
Alkaline batteries (non-rechargeable), external tag/RFID reader and Bluetooth, and internal keypad included as standard.
Key system: kit of 3 master cards + kit of 3 user cards + 1 recodable key (not unified) + 3 master keys with Security Card. The lock/door can be opened and managed via the Argo app over Bluetooth. Handle is always engaged.
7 securing points: 6 moving points and 1 spring latch (without fixed bolts).
Custos C8 SMART Single Action
Electromechanical lock (SMART single-action version) with Duo anti-drill and anti-bumping key-to-key cylinder (Grade 2) protected by anti-drill and anti- pipe defender (Grade 4).
Alkaline batteries (non-rechargeable), external tag/RFID reader and Bluetooth, and internal keypad included as standard (available on request without internal keypad).
Key system: kit of 3 master cards + kit of 3 user cards + 1 recodable installation key (not unified) + 3 master keys with Security Card. The lock/door can be opened and managed via the Argo app over Bluetooth.
7 securing points: 6 moving points and 1 spring latch (without fixed bolts). Note: single-action version (commonly called “anti-panic”) allows full unlocking of all bolts simply by pressing the handle (even when the door is securely closed).
